Graphics effect that fades geometry into a fog color with increasing distance (and optionally with decreasing altitude), improving depth perception on large 3D scenes. More...

#include <luciad/maps/effects/FogEffect.h>

Public Member Functions
	FogEffect (const FogEffect &)=delete
const std::shared_ptr< FogModel > &	getModel () const
	Returns the fog model.
bool	isEnabled () const
	Returns whether the fog effect is enabled.
FogEffect &	operator= (const FogEffect &)=delete
void	setEnabled (bool enabled)
	Sets whether the fog effect is enabled.
void	setModel (std::shared_ptr< FogModel > model)
	Sets the fog model.

Detailed Description

Graphics effect that fades geometry into a fog color with increasing distance (and optionally with decreasing altitude), improving depth perception on large 3D scenes.

The effect is disabled by default and is only applied to a 3D view. On a 2D view it has no effect.

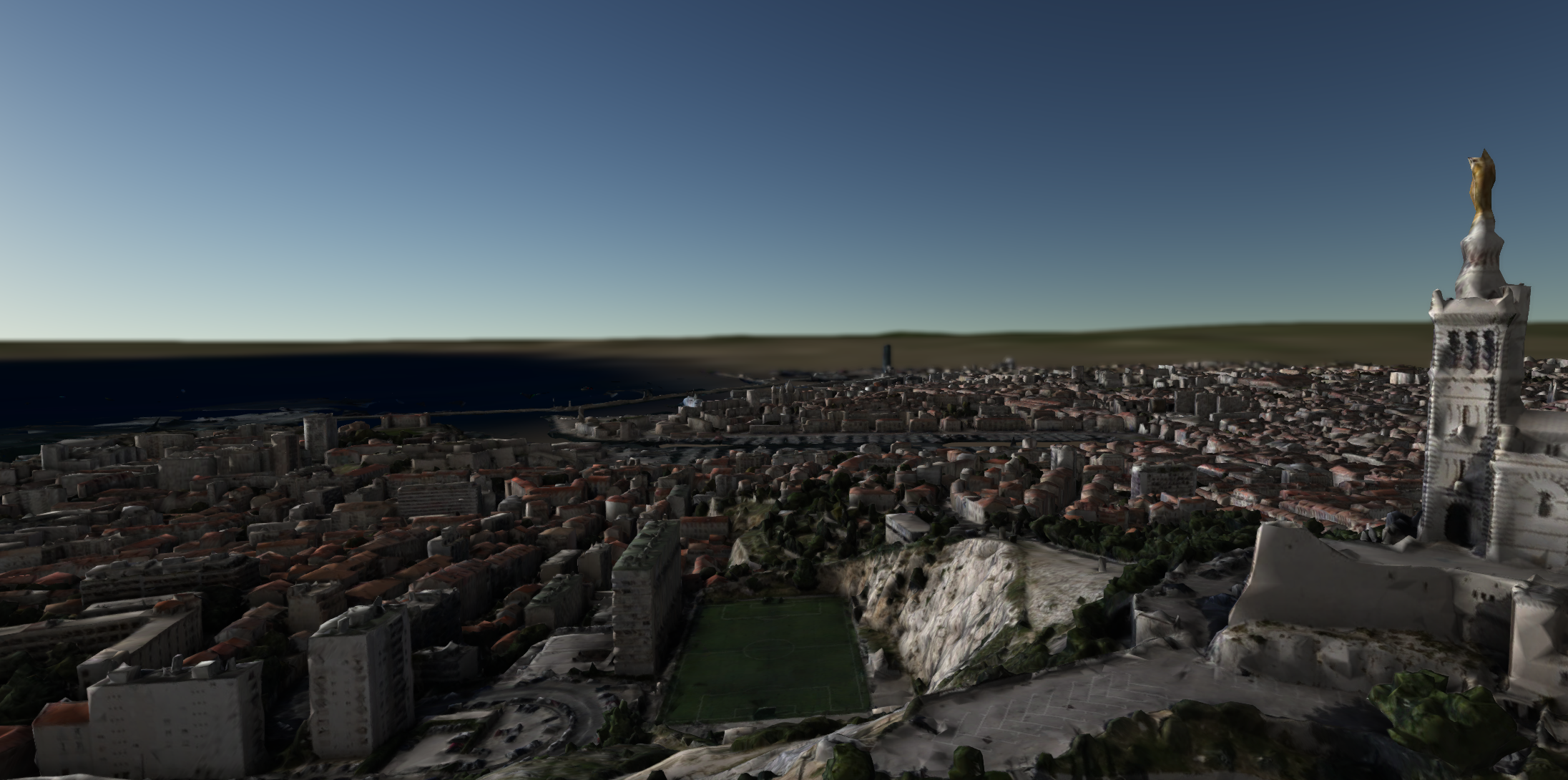

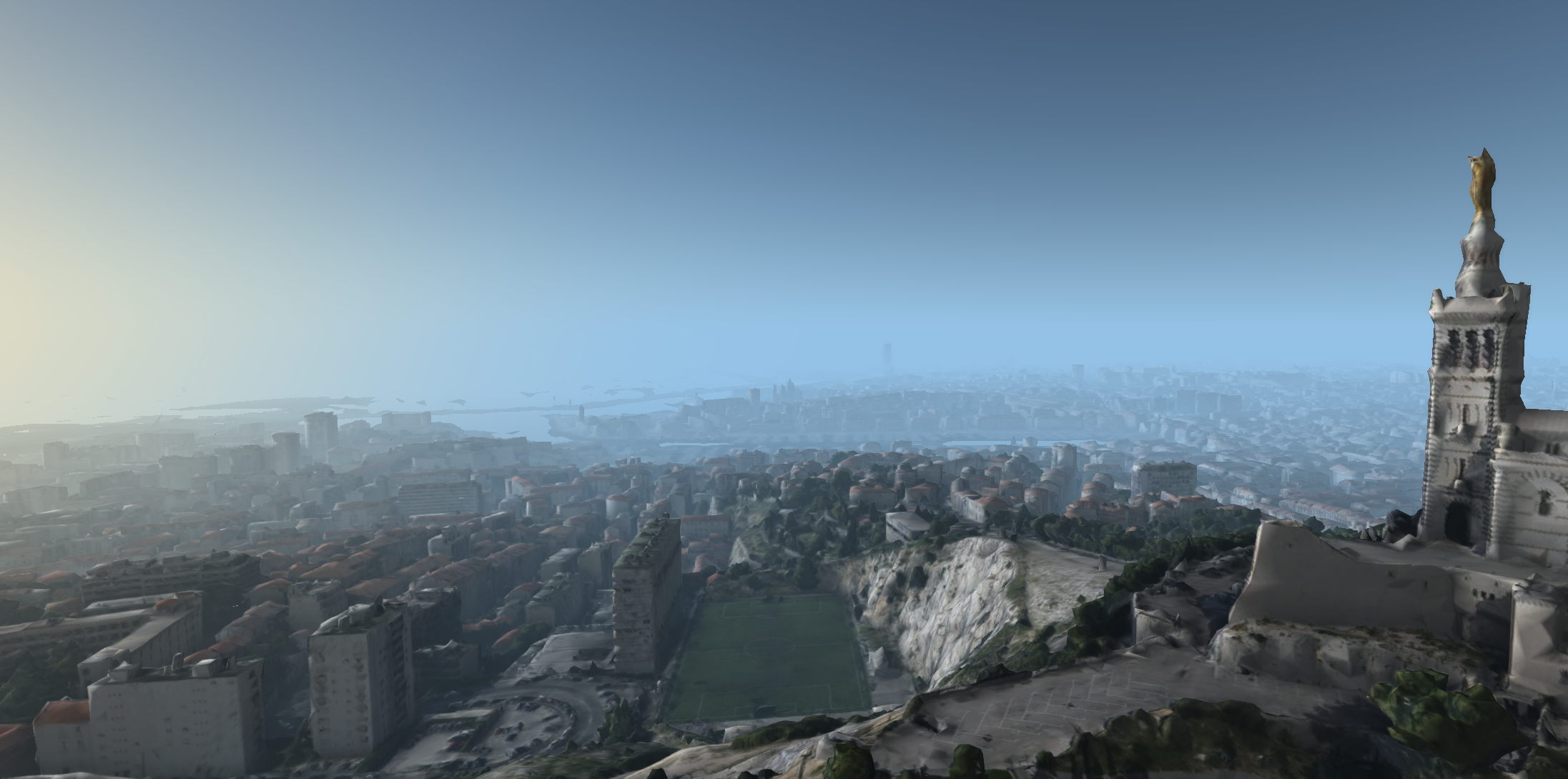

Fog disabled on the left, enabled on the right

Fog is an artist-controlled alternative to the AtmosphereEffect scattering model: it does not require a light, and you steer it directly with distances in meters. See the map effects article for guidance on when to use fog versus atmospheric scattering.

The fog parameters are held by an immutable luciad::FogModel. Read them with getModel and change them by building a new model and passing it to setModel.

You cannot create a FogEffect. Retrieve it from GraphicsEffects::getFog.

Since: 2026.1

Constructor & Destructor Documentation

◆ FogEffect()

luciad::FogEffect::FogEffect ( const FogEffect & )

delete

Member Function Documentation

◆ getModel()

const std::shared_ptr< FogModel > & luciad::FogEffect::getModel ( ) const

Returns the fog model.

Returns: the fog model.

◆ isEnabled()

bool luciad::FogEffect::isEnabled ( ) const

Returns whether the fog effect is enabled.

Returns: whether the fog effect is enabled.

◆ operator=()

FogEffect & luciad::FogEffect::operator= ( const FogEffect & )

delete

◆ setEnabled()

void luciad::FogEffect::setEnabled ( bool enabled )

Sets whether the fog effect is enabled.

The default is false.

Parameters

enabled true to enable the fog effect or false to disable it.

◆ setModel()

void luciad::FogEffect::setModel ( std::shared_ptr< FogModel > model )

Sets the fog model.
